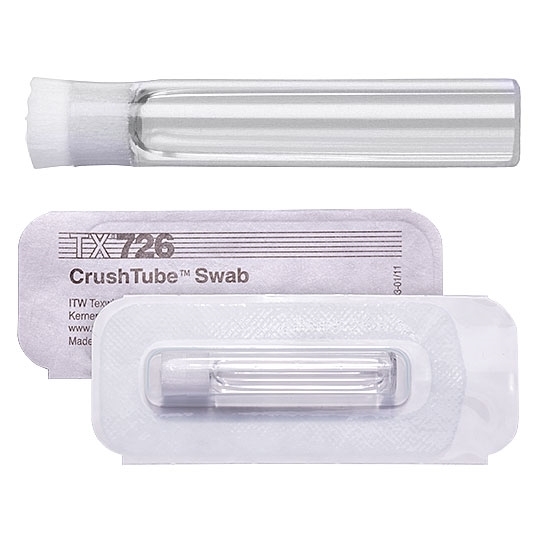

Picture of CrushTube™ TX726

CrushTube™ TX726

NONWOVEN MATERIAL HEAD

Texwipe’s CrushTube™ system includes a 100% polyester (hydroentangled) nonwoven material head attached to an internal vial containing 91% IPA / 9% DIW solution, which is enclosed in a protective casing.

When the internal vial is crushed, the head becomes saturated with the 91% IPA / 9% DIW solution for Point-of–Use application.

Features & Benefits

  • IPA solution is separated from head until activated
  • Gently crush the vial to release the IPA and saturate the brush/tip
  • Precision spot cleaning, no extra container of solvent needed
  • Individually packaged to minimize storage need, easy to transport and use
  • Individually packaged in cleanroom compatible material
  • Lot coded for traceability and quality control

Part No.Head WidthHead ThicknessHead LengthHandle WidthHandle ThicknessHandle LengthTotal Swab Length
TX726 8mm (0.327") 8.3mm (0.327") 10mm (0.394") 9.5mm (0.374") 9.5mm (0.374") 40mm (1.575") 50mm (1.969")

Part Number: TX726


Product Specs

Type: IPA pre-wetted swab Inner Bags: 50 swabs/box Outer Bags: 10 boxes/case Materials: 500 swabs total/case

Applications

  • Solvent cleaning and maintaining of ion emitter tips
  • Cleaning of grooves, tracks, slots and other small spaces
  • Removing adhesive buildup
  • Solvent cleaning sensitive surfaces such as optical assemblies
